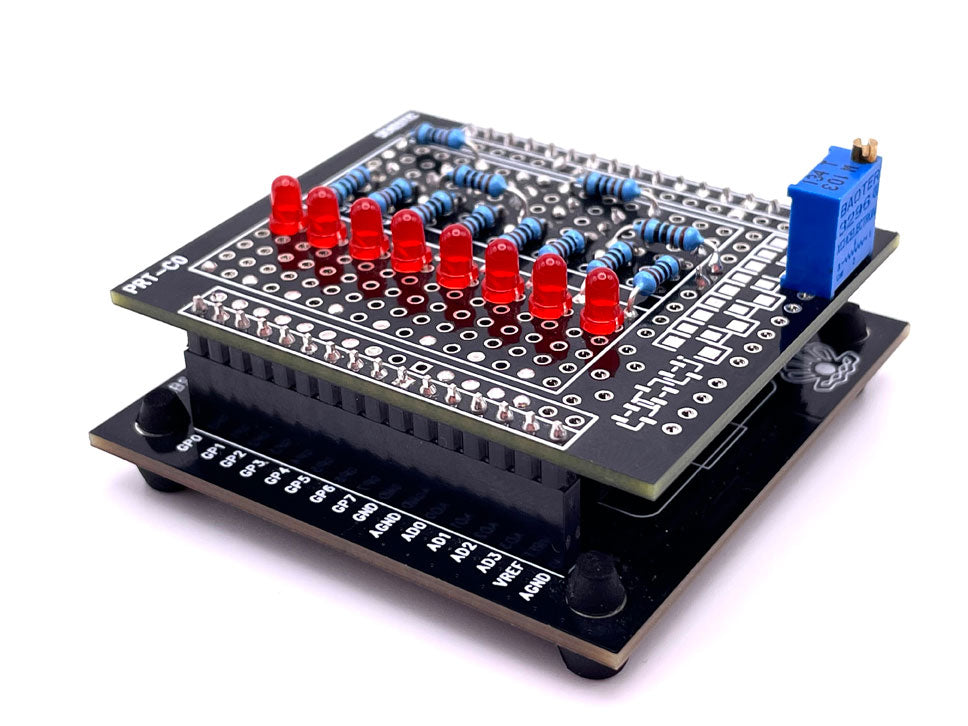

Prototype Assembly Kit for NodeMCU ESP-12E with ESP8266 – 2 Circuit Prototype Boards and 1 baseboard

Two circuit boards (PRT-B1 and PRT-C0) and one base board (EBS-C1) are crafted for prototyping of mixed signal electronic circuits with the popular NodeMCU (ESP-12E) Wi-Fi module. The boards are sold as a DIY assembly kit in which the NodeMCU module is not included but can be purchased separately.

The kit requires basic soldering skills

Features

·         Baseboard EBS_C1 with footprint for NodeMCU (ESP-12E) module

·         The module can be press fit into position without soldering

·         Large array of solder pads for electronic circuit prototyping (boards PRT-B1 and PRT-C0)

·         Footprint for SOP surface mount integrated circuits with various widths and up to 24 pins (PRT-B1)

·         Footprint for components with 1206, 0805 and SOT-23 packages (PRT-C0)

·         PCB rubber legs to ensure slip-free performance on hard surfaces

·         NodeMCU not included in the kit

• Great platform for testing small circuits with NodeMCU modules
