Environmental Sensors Board CMT-B-KIT with LCD and EBS Baseboards with NodeMCU (ESP-12E) Wi-Fi Module

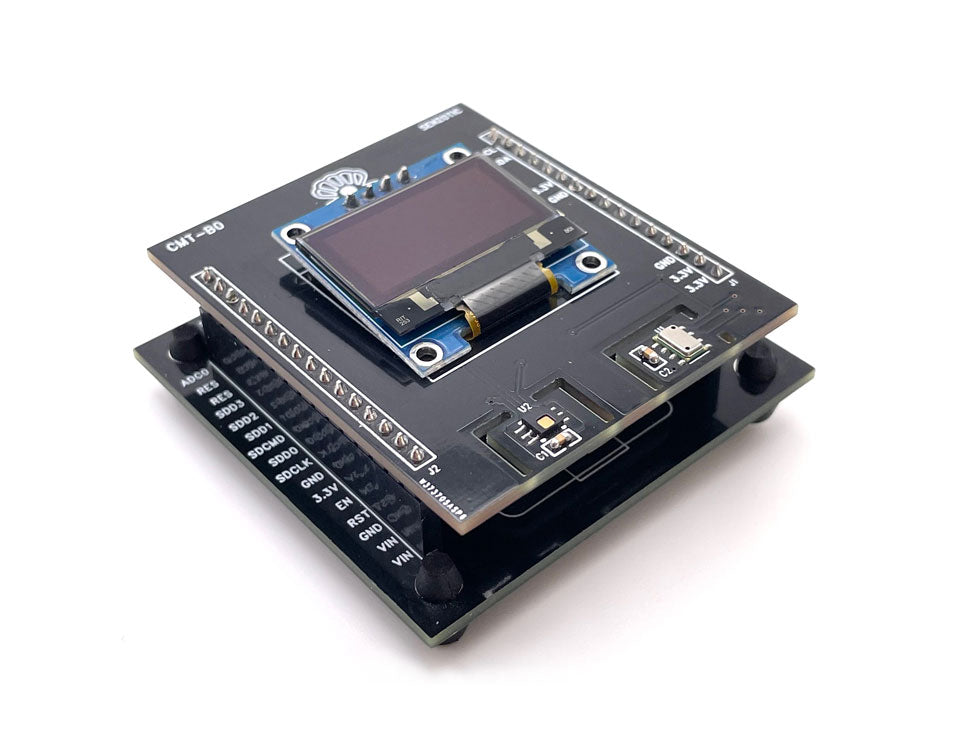

CMT-B-KIT is designed to add environmental sensing capability to electronic circuit prototyping with NodeMCU (ESP-12E) Wi-Fi modules and the Senzotic EBS baseboards. It features OLED display with I²C communication interface and supporting libraries from the Arduino IDE.

Texas Instruments HDC2080 digital temperature and humidity sensor is used in this design.

The board also features barometric pressure sensor MS560702BA03-50 by TE Connectivity Measurement Specialties

We provide open-source demonstration application which includes the libraries for the support of the digital sensors. The source code is available for download from this GIT repository:

https://github.com/gkrast/SC_CMT_DEMO

Download the User Manual here

Features

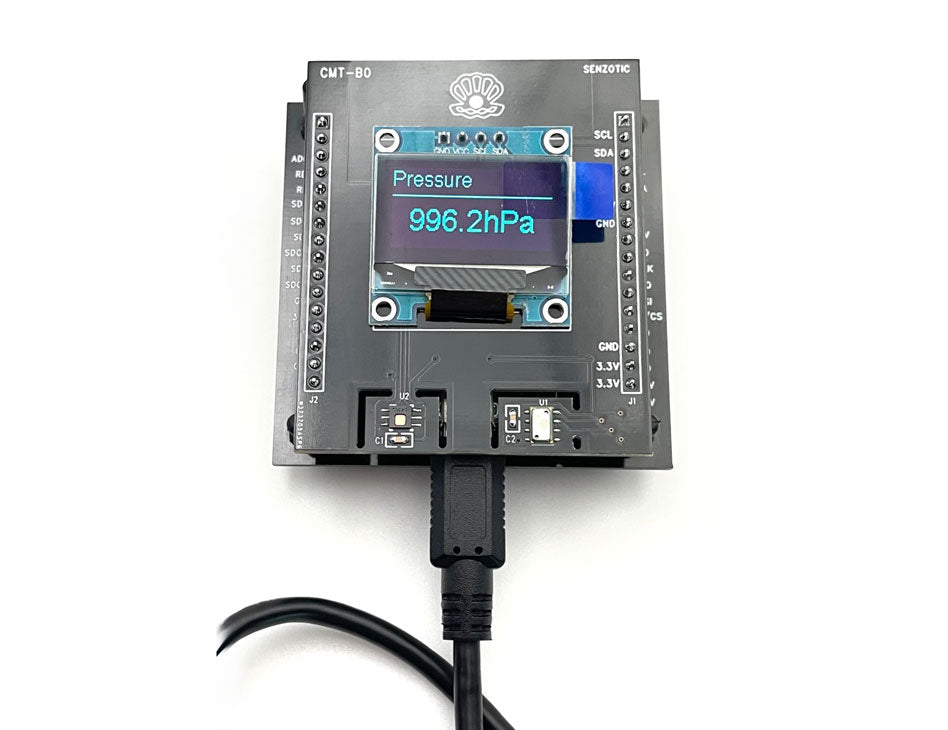

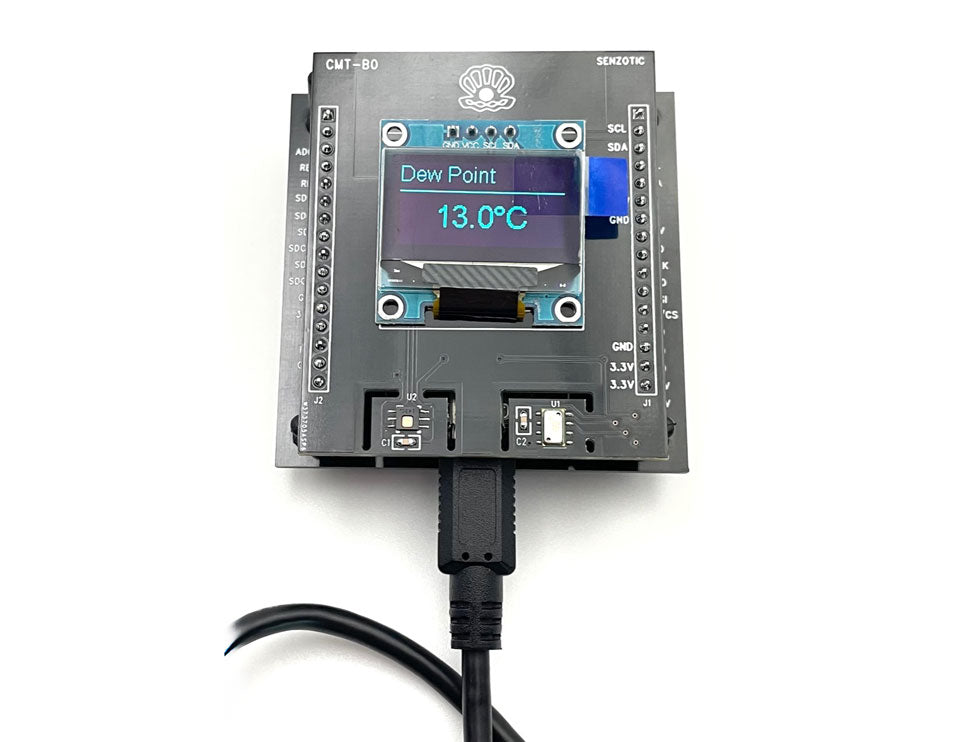

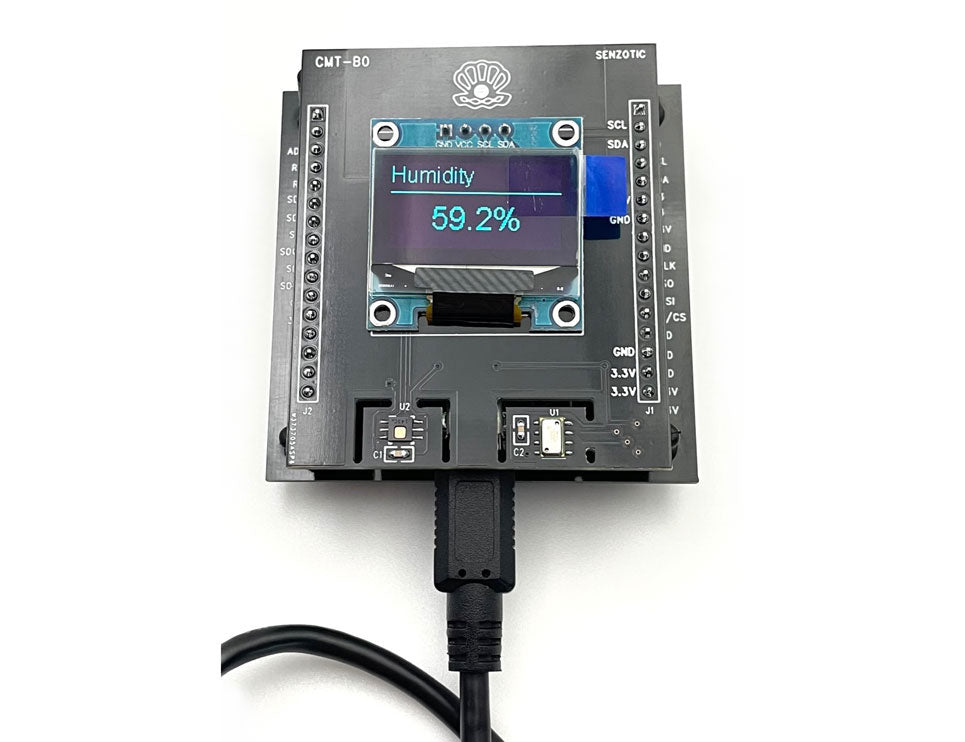

·         Start measuring temperature, humidity, pressure and dewpoint right out of the box

·         Includes SSD1306 high-definition OLED display (26mm x 15mm) with I²C communication interface

·         Features high accuracy temperature and relative humidity sensor HDC2080

·         Uses barometric pressure sensor MS560702BA03-50

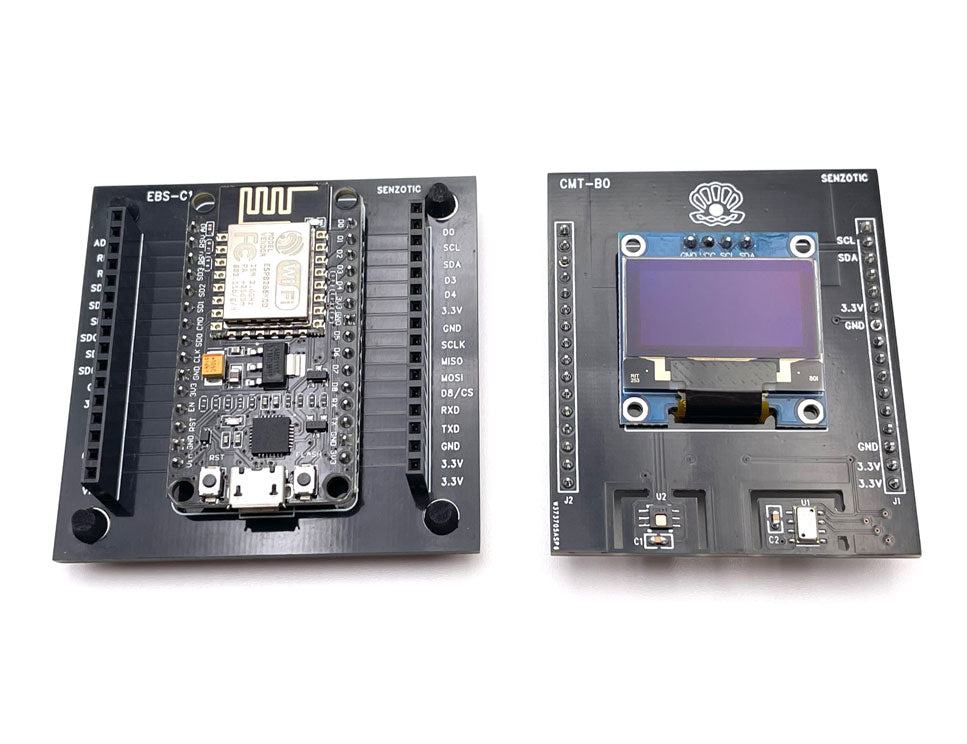

·         Package includes one EBS-C1 board with mounted NodeMCU, loaded with demonstration firmware

•  Open-source firmware runs on Arduino IDE or Visual Studio with visual Micro extension
