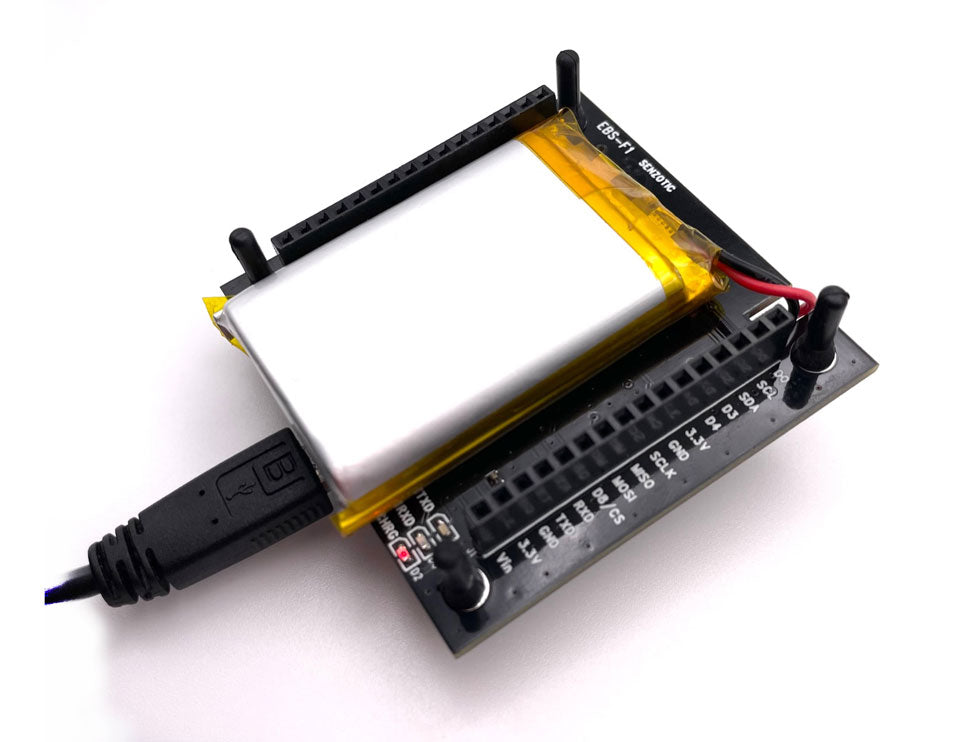

Baseboard for Electronic Circuit Prototyping with ESP8266 Wi-Fi Module and Li-Ion battery charger

Baseboard EBS-F is equivalent to the popular IO expansion board EBS-D1 with the integrated components of a standard NodeMCU module and Li-Ion battery power. The board can be used just like a standard NodeMCU module as it remains fully compatible with all supported programming languages and the Arduino IDE. The onboard FTDI USB to UART transceiver and the serial stub firmware in ESP8266 are used for programming code and for debugging.

This design gives you the option to run your prototype circuit on portable battery power. The board has one standard JST 2mm connector for the standard 103450 Li-Ion rechargeable battery with 2000mAHr capacity. The board also includes a fast Li-Ion battery charging circuit with LED indicator.

Example code and libraries can be downloaded from the GIT repository at this link:

https://github.com/gkrast/SC_CONTROL

Features

·         Compatible with Arduino IDE and firmware written for nodeMCU (ESP-12E) or EPS8266

·         Available programming option with Tag-Connect cable

·         Includes 4-channel 10-bit ADC MCP3004 with 200ksps conversion rate

·         Available hardware option for external or internal ADC voltage references

·         Includes 8 digital IOs with Microchip’s MCP23S08

·         Available interrupt on change for any of the digital IOs

·         Free example code and library for MCP3004 and MCP23S08

·         Available option for portable power by rechargeable Li-Ion battery (not included)

• Integrated Li-Ion battery charger with LED indicator
